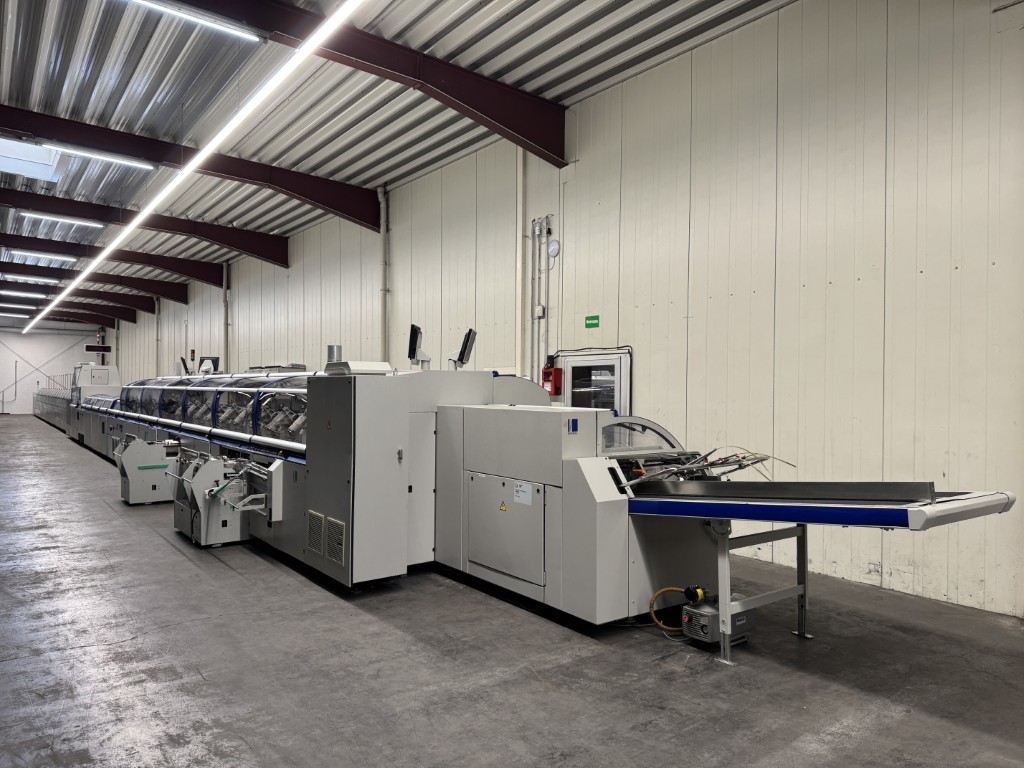

KM 412.E Perfect Binding Line

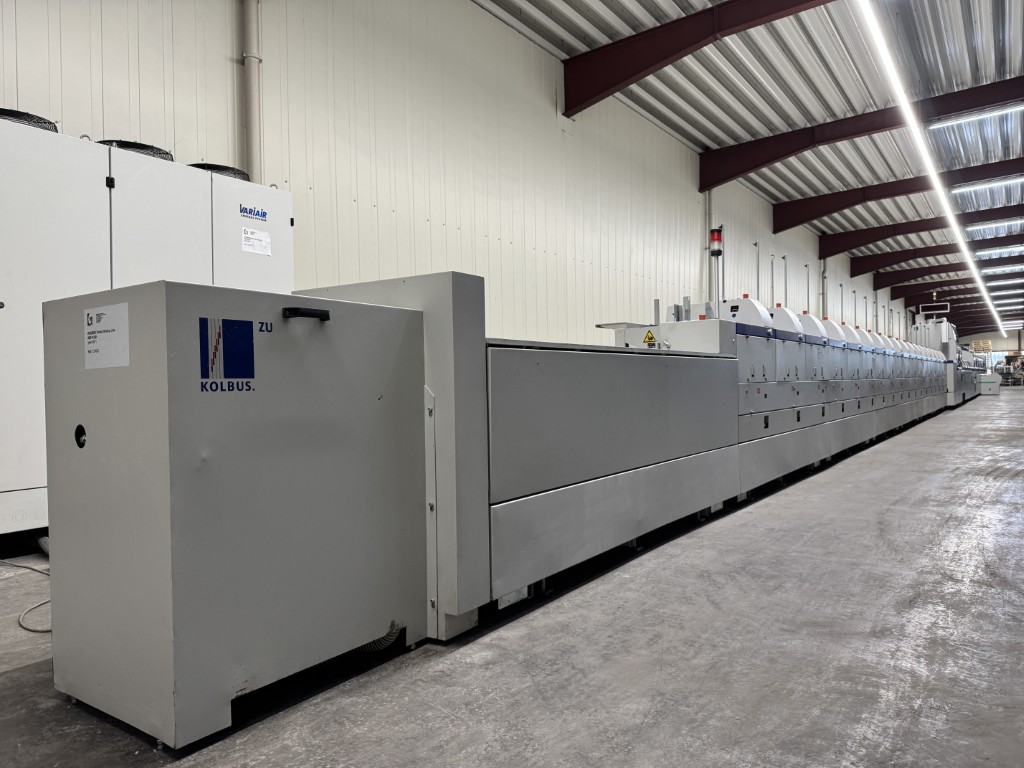

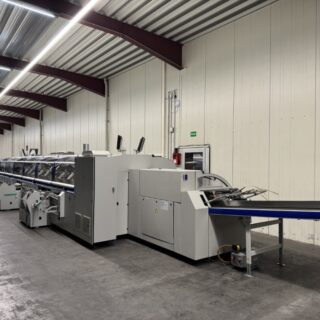

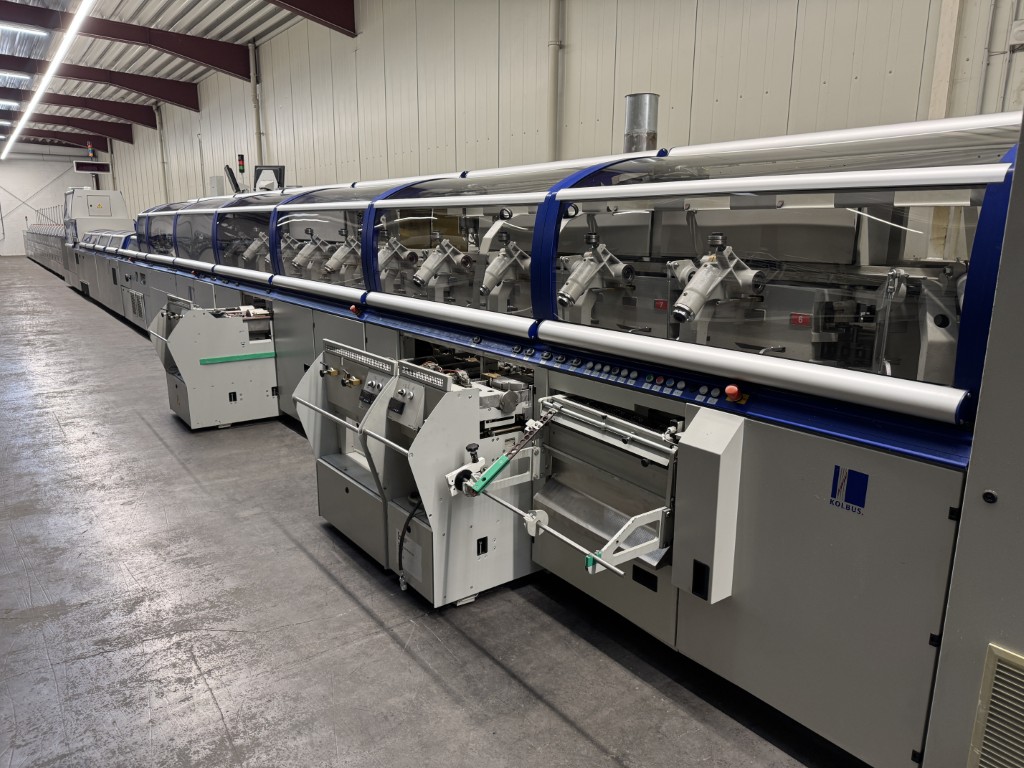

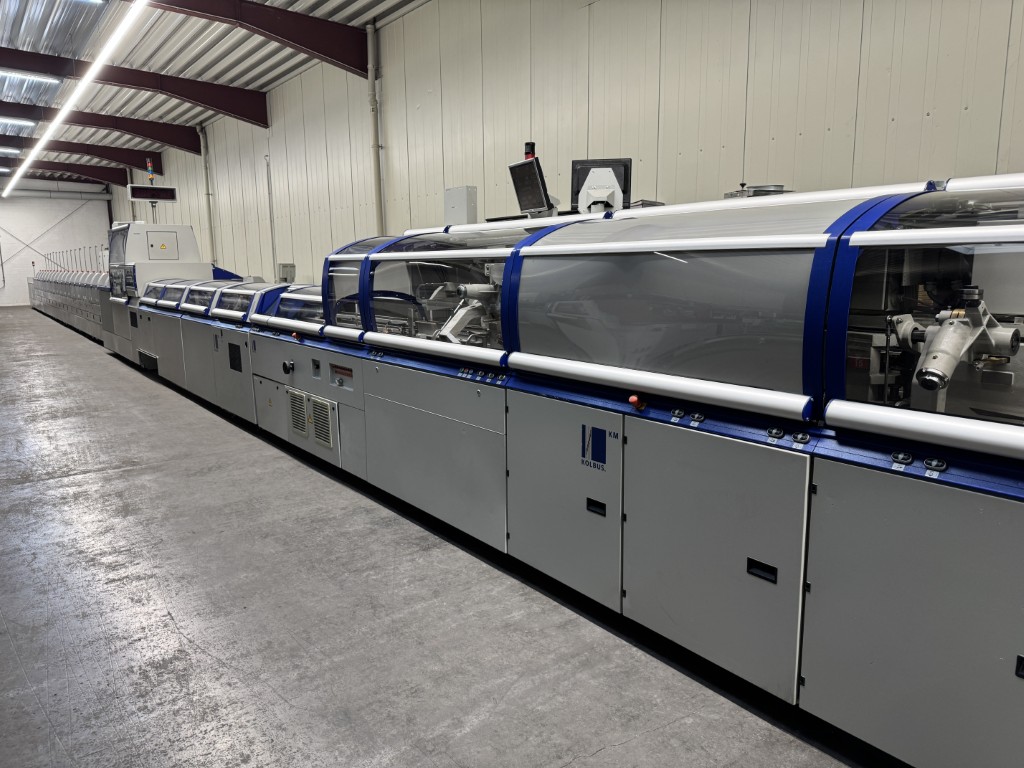

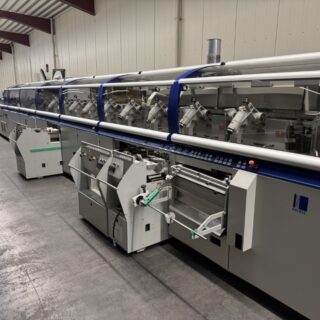

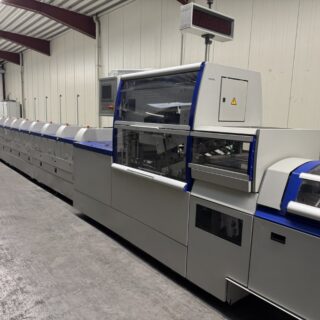

Gathering Machine ZU 841.B
– hand feeding at the end of ZU
– MECCANOTECNICA book block feeder XMT
– 18 stations basic frame
– 18 feeders with automatic section thickness control ATC and with signature recognition system SignaLynx
– card gluer KK 841
– reject unit AS 841 to the left

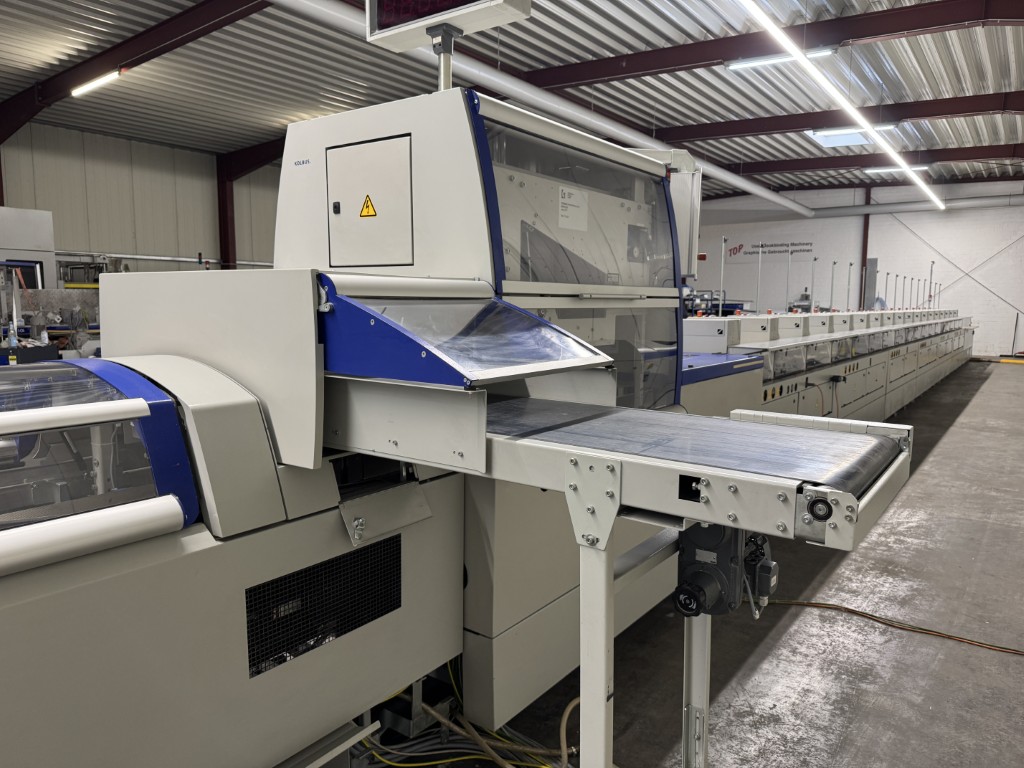

– transfer channel as connection unit to the binder
– extended jogging station
– air center VariAir

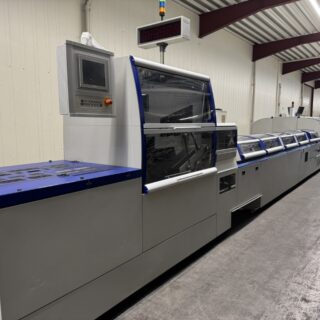

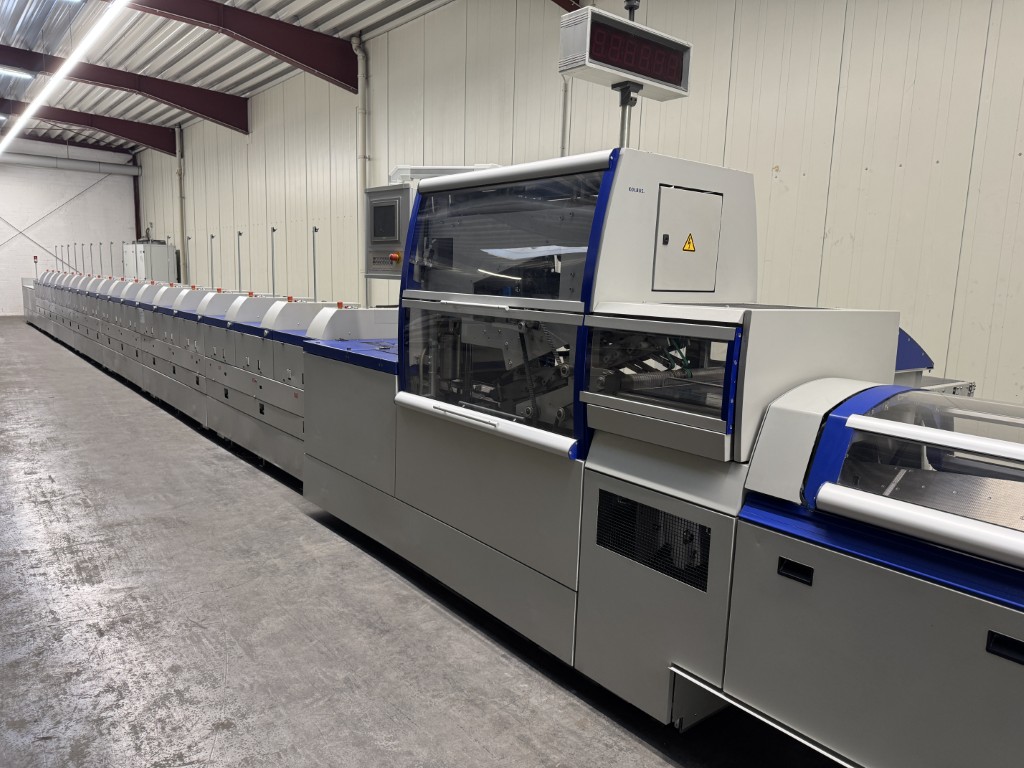

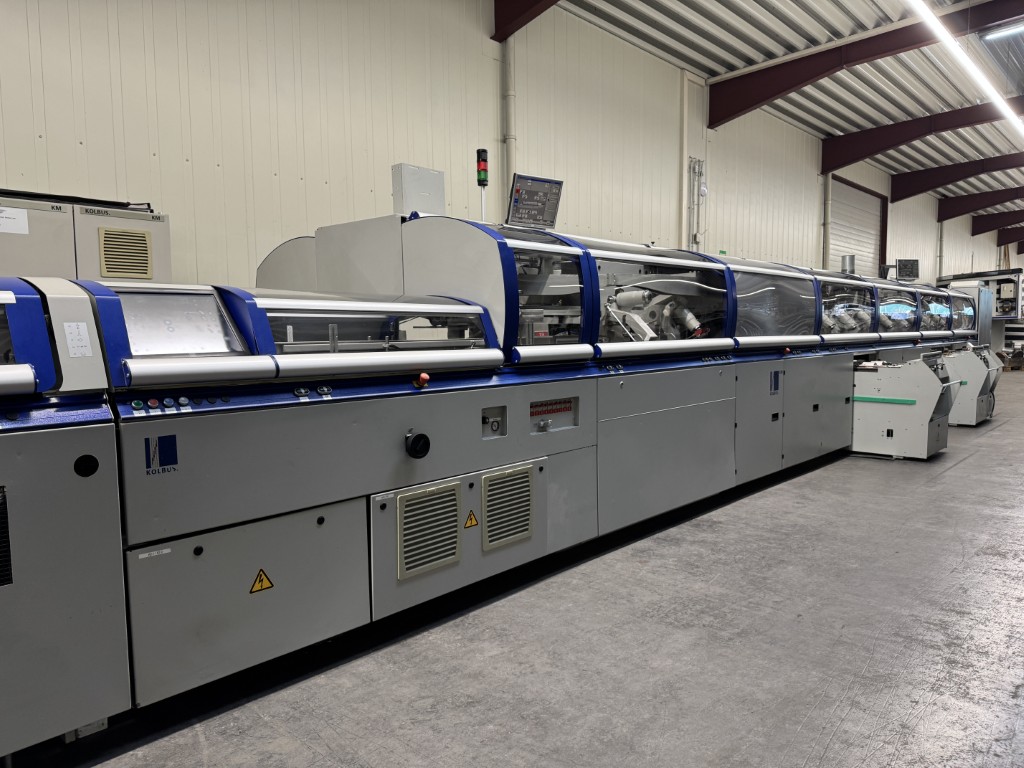

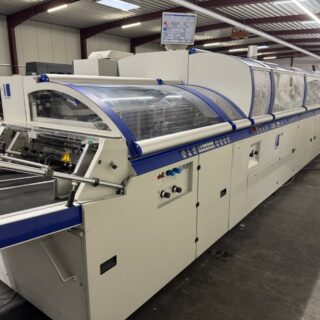

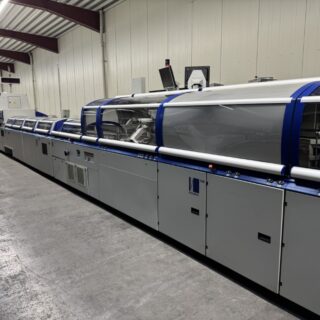

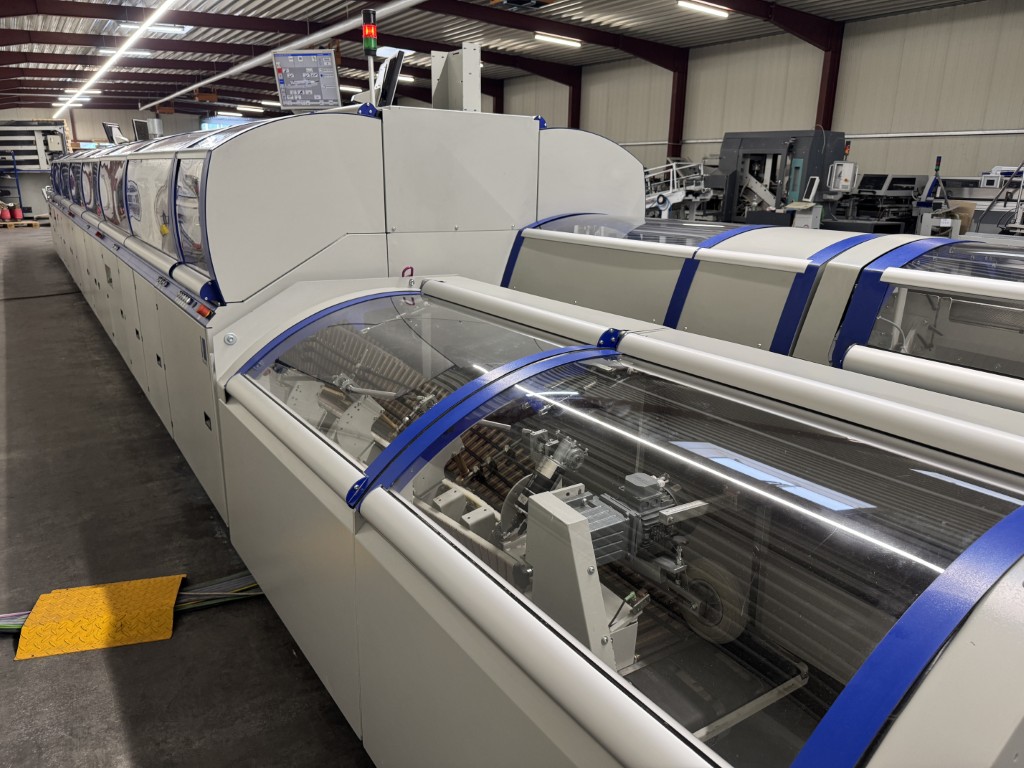

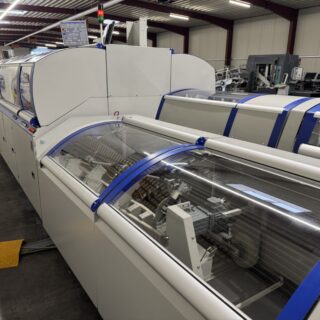

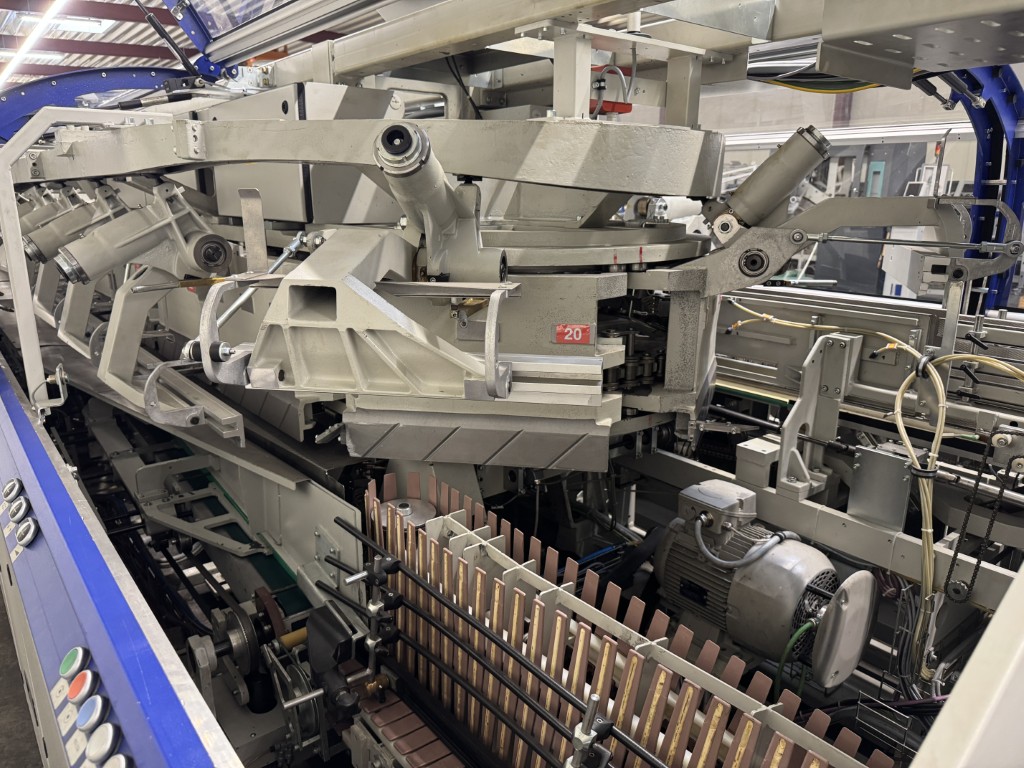

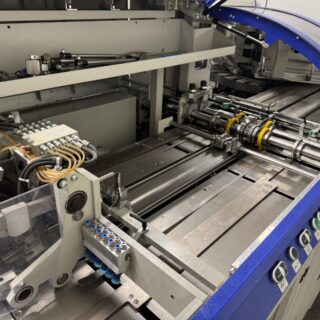

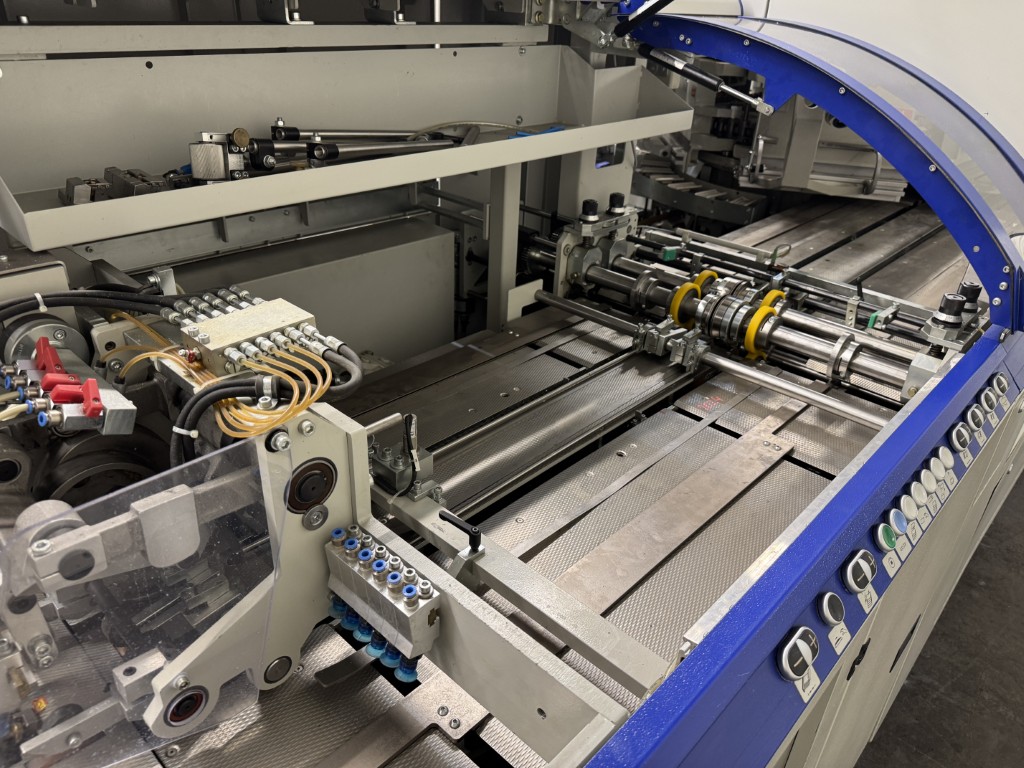

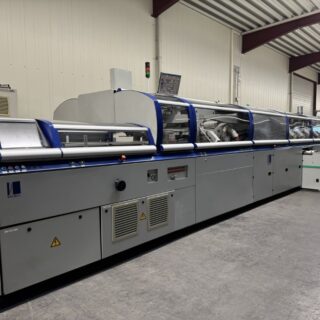

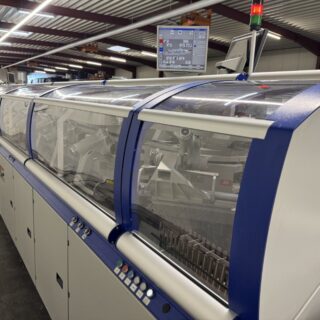

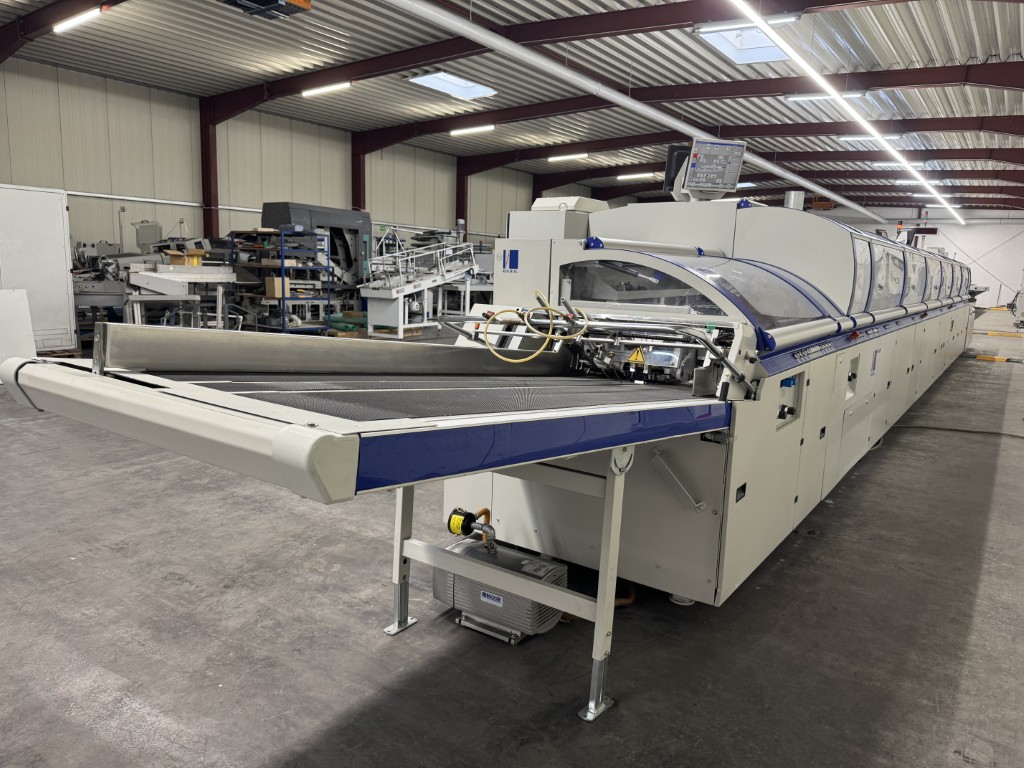

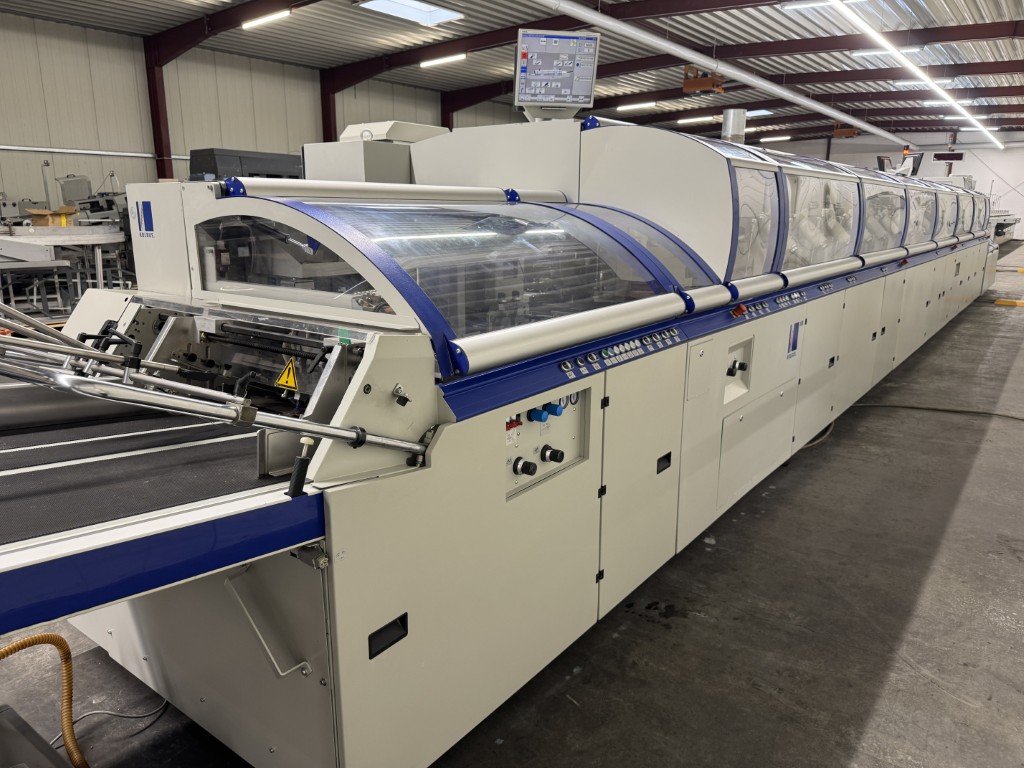

Perfect Binder KM 412.B
– 30 clamps
– infeed incl. coupling to a ZU gathering machine
– main milling station with strip cutter and dust cutter
– 4 spine preparing units (equalizing, notching, micro-notching, brushing station)
– 1st cold spine gluing unit
– cold glue pump
– IR heater for intermediate drying
– Hotmelt spine gluing unit
– premelter LH 375.C
– changeable PUR spine gluing unit
– Nordson smelting unit XNO 962
– Hotmelt side gluing unit
– premelter LH 375.A
– lining station
– IR heating at curve
– stream cover feeder SAL 413.B
– scoring station for 6 scores
– 2 pressing stations
– straight delivery

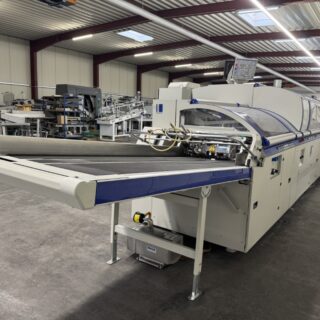

– lay down device to the left with shingled stream function

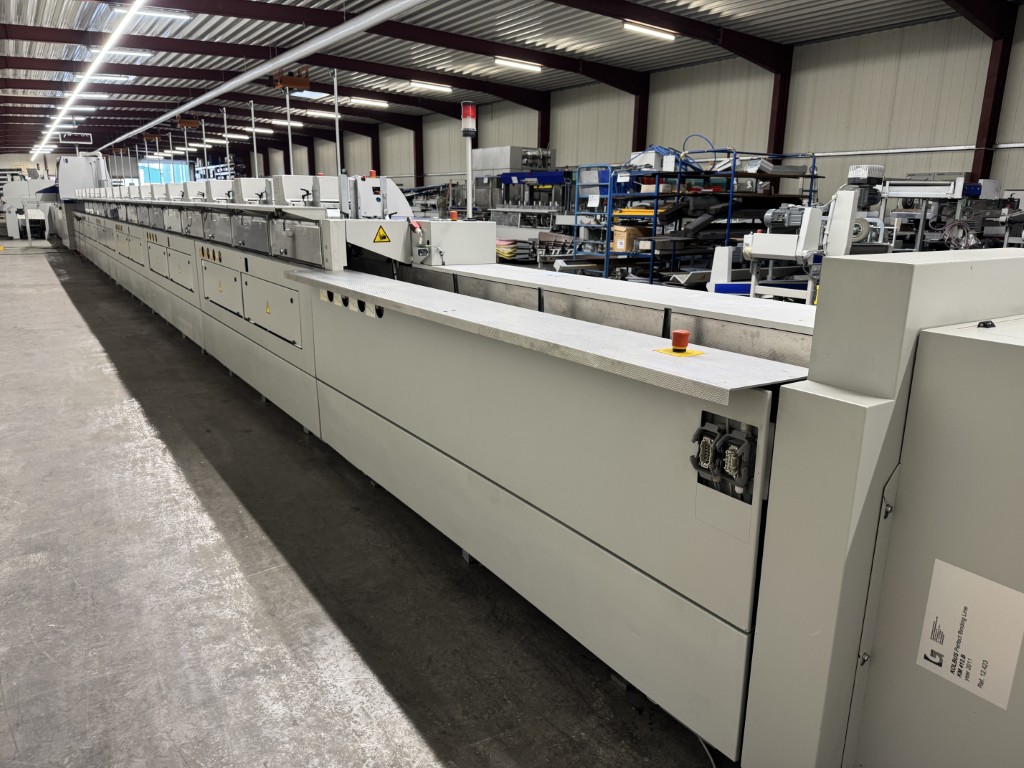

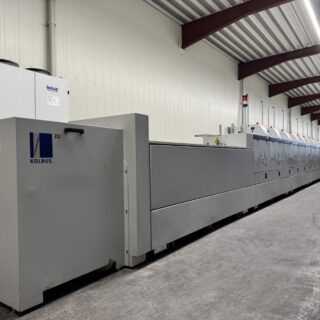

Transport and Drying Line
– incl. drying tower (9,25 windings)
– with reject unit / emergency delivery

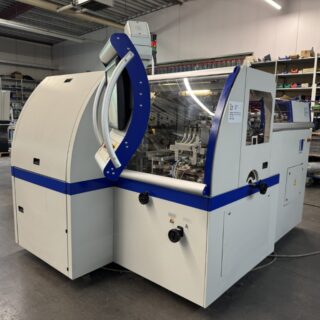

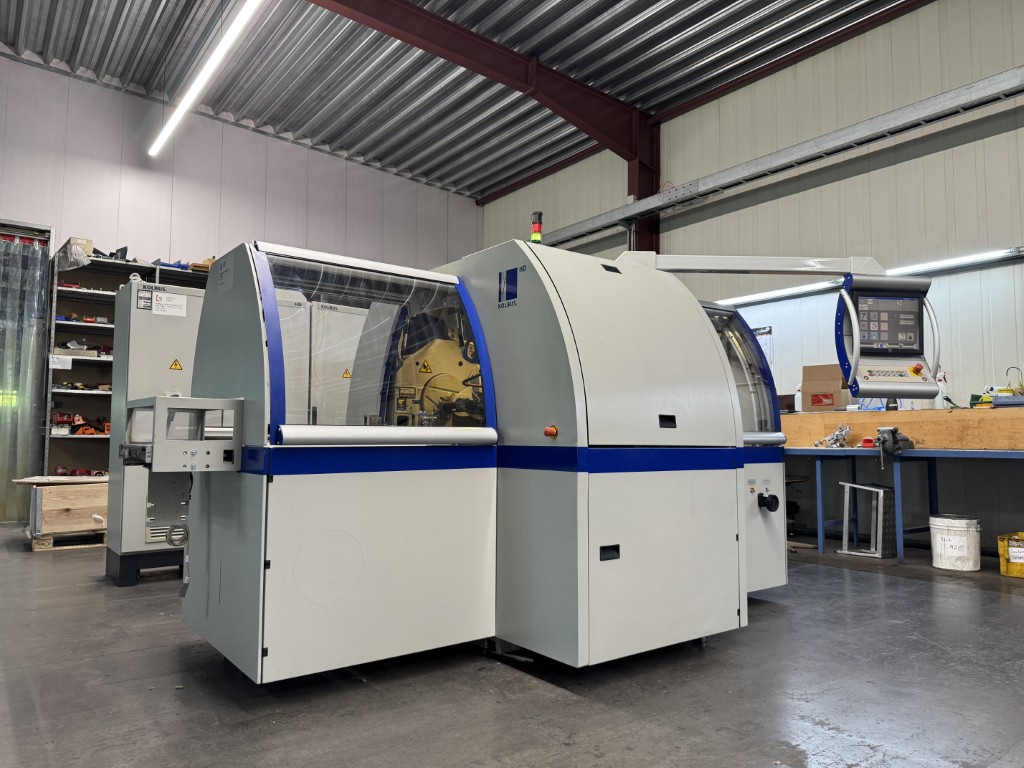

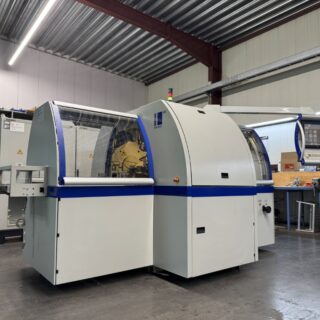

High Capacity Three Knife Trimmer HD 153.P
For three side trimming of book blocks and brochures
used as an individual machine or as a unit within book production lines
standard equipment:
– right hand infeed with counter stacker
– copilot with touch screen monitor
– standard cutting tables (no. 7 – 18)
additional equipment:
– silicon-spraying device
– 2 set of knives

RIMA / KOLBUS Compensating Stacker XRS 130
For cross stacking after a three knife trimmer,
for stacking of book blocks, brochures and magazines.
– delivery to left and right
