DA 370 Case-maker
Kolbus
Made in 2023, ref. 13054
Model:
DA 370 Case-maker
Manufacturer:
Kolbus
Ref #:
13054
Year Manufactured:
2023
Details:

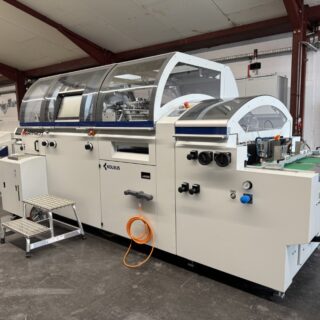

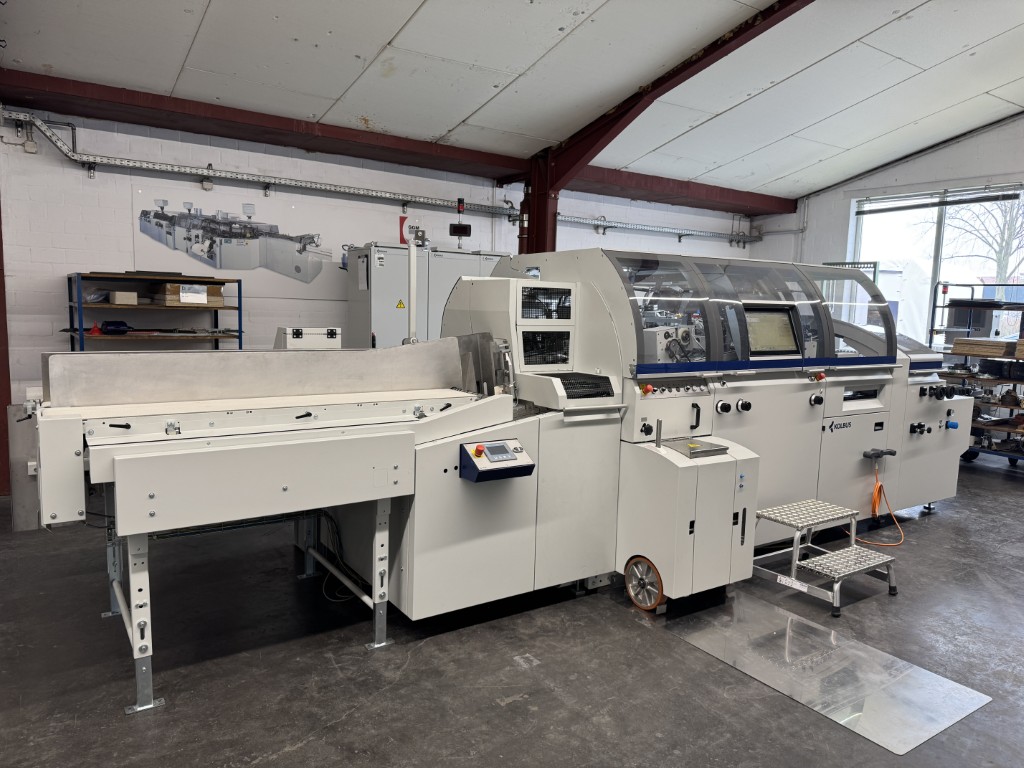

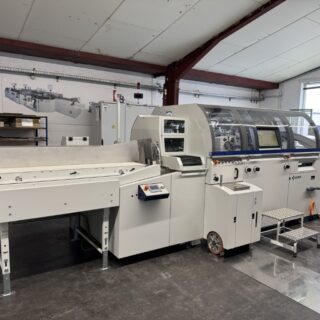

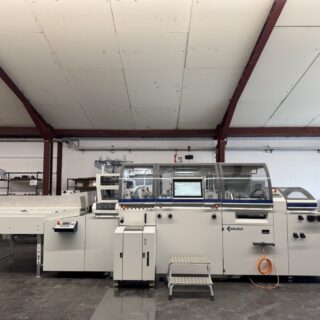

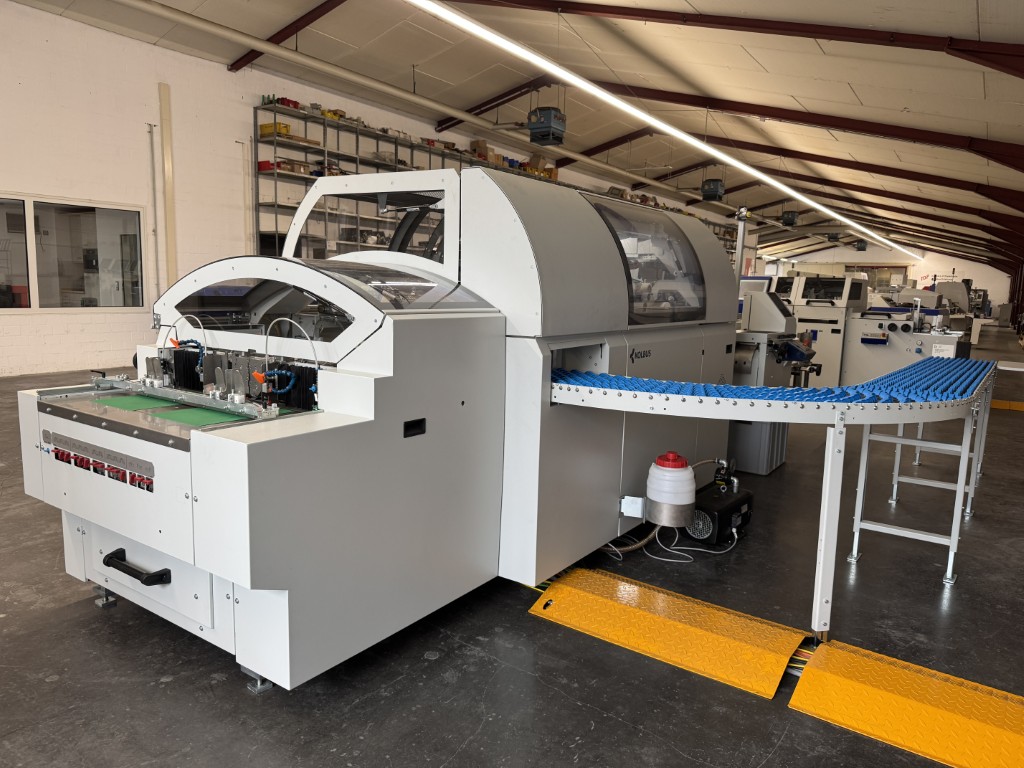

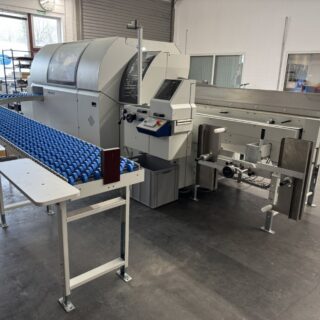

Kolbus DA 370 Case-maker

New generation of casemaker for faster production and shorter make-ready times.

Automatic production of book cases, files, display cards, calendar backs or game bobards, at rates of up to 65 cycles/min.Maximum production and process reliability in the manufacture of book cases. The DA 370 casemaker is a versatile machine for a wide range of applications. The machine with its non- stop case feeder is engineered to be ergonomic and extremely operator-friendly so that it can be easily operated by one person.


Configuration:
• Copilot system with touchscreen
• sectional touch panel for direct operation
• large display for showing the speed and malfunction messages
• board pre-stacking conveyor to automatically reload the magazines (stream cover and stack feeder)

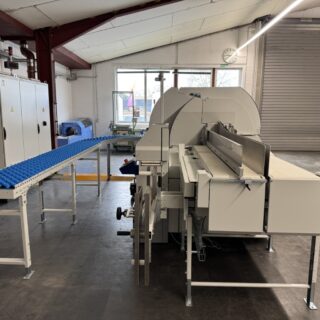

• counter-stacker delivery with roller conveyor delivery incl. table
• cloth feeder for non-stop operation with stack magazine
• missing product check during separation of cloth and cardboard
• cloth cylinder with grippers and interchangeable plates for rubber pads (5 plates 500mm wide and 5 plates 720mm wide, incl. 10 rubber pads)
• cardboard center strip magazine
• device used to prepare center strip roll
• center strip waste chopper
• center strip rub-down unit (head and foot)
• rub-down unit used to bond the covering material to cardboards and spine strip without creases
• extendable gluing station for processing hot glue with glue preparation in the premelter, heated glue roller and scraper roller
• viscosity control unit for an automatic supply of water via a water container with a pump
• device for padded cases
• function used to request individual cases for monitoring purposes on the operating side
• servo-controlled drive technology based on Siemens technology

Special equipment:
• device for producing quarter-bound cases in two operating steps
• preparation for cold glue processing during gluing of lining
• device for small format
• device for large format
• Remote Service Gateway
